Home>Products>Single Row Ball Bearings>Single Row Ball Bearings 6002DDUC3

  • Single Row Ball Bearings 6002DDUC3
  • Single Row Ball Bearings 6002DDUC3

NSK 6002DDUC3 MODELS

Need a CAD or 3D Model?

Contact NowWhatsAppBe Our Agent

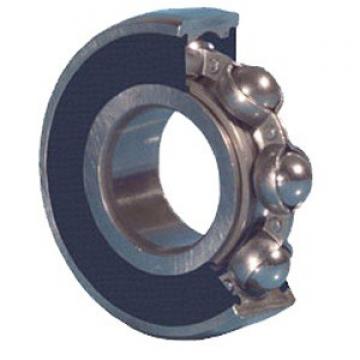

Single Row Ball Bearings 6002DDUC3

category

Single Row Ball Bearings

NSK 6002DDUC3 Bearing SPECIFICATIONS

  • NSK
  • 6002DDUC3

  • Single Row Ball Bearings
  • 12.0
  • NSK
  • N/A
  • 0.02
  • 0029176085949
  • B00308
  • 2 Seals
Agicb industrial parts LLP

Agicb industrial parts LLPChina

  • Agicb industrial parts LLP2020-07-10 09:46:19
    Welcome to my shop! Glad to serve you! Please send your question!
Price Inspection Certificate Product Specifications Company Profile

Product Details

  • Single Row Ball Bearings
  • 12.0
  • NSK
  • N/A
  • 0.02
  • 0029176085949
  • B00308
  • 2 Seals
  • ABEC 1 | ISO P0

NSK 6002DDUC3 Product Description

NSK 6002DDUC3 bearing Size Chart (mm/inches)

d15 mm
D32 mm
B9 mm
rs min0.3 mm
Radial clearance classCM
Mass0.03 kg
Dynamic load, C5.6 kN
Static load, C02.83 kN
Fatigue limit load, Cu0.13 kN
f013.9
Nlim (oil)26,000 rpm
Nlim (grease)22,000 rpm
Min operating temperature, Tmin-40 °C
Max operating temperature, Tmax120 °C
Characteristic cage frequency, FTF0.4 Hz
Characteristic rolling element frequency, BSF4.73 Hz
Characteristic outer ring frequency, BPF03.59 Hz
Characteristic inner ring frequency, BPFI5.41 Hz
da min17 mm
Da max30 mm
ra max0.3 mm
CategorySingle Row Ball Bearings
Inventory0.0
Manufacturer NameNTN
Minimum Buy QuantityN/A
Weight / Kilogram0.03
Product GroupB00308
EnclosureOpen
Precision ClassABEC 1 | ISO P0
Maximum Capacity / Filling SlotNo
Rolling ElementBall Bearing
Snap RingNo
Internal Special FeaturesNo
Cage MaterialSteel
Internal ClearanceSpecial
Inch - MetricMetric
Long Description15MM Bore; 32MM Outside Diameter; 9MM Outer Race Width; Open; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; No Internal Special Features; Special Internal Clearance; Steel Cage
Other FeaturesDeep Groove | Shell Alvania Prelubricated
CategorySingle Row Ball Bearing
UNSPSC31171504
Harmonized Tariff Code8482.10.50.68
NounBearing
Keyword StringBall
Manufacturer URLhttp://www.ntnamerica.com
Weight / LBS0.0705
Outside Diameter1.26 Inch | 32 Millimeter
Bore0.591 Inch | 15 Millimeter
Outer Race Width0.354 Inch | 9 Millimeter
Inner Race Width0 Inch | 0 Millimeter

NSK 6002DDUC3 INTERCHANGE

Single Row Ball Bearings Part series 6002DDUC3 is a potential replacement for these common bearing part numbers:

  • 6002DDUC3

  • 6002DDUC3

  • 6002DDUC3

  • 6002DDUC3

  • 6002DDUC3

  • 6002DDUC3

  • 6002DDUC3

  • 6002DDUC3
